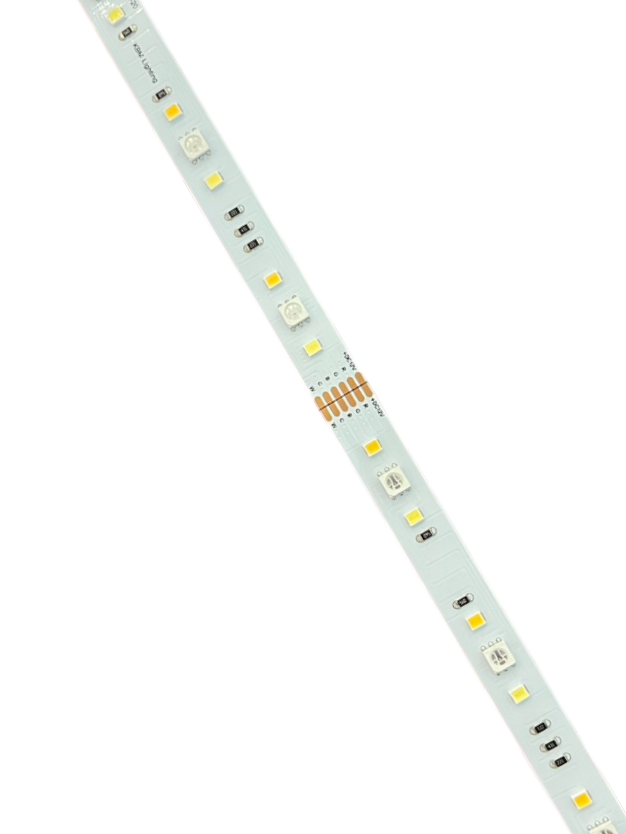

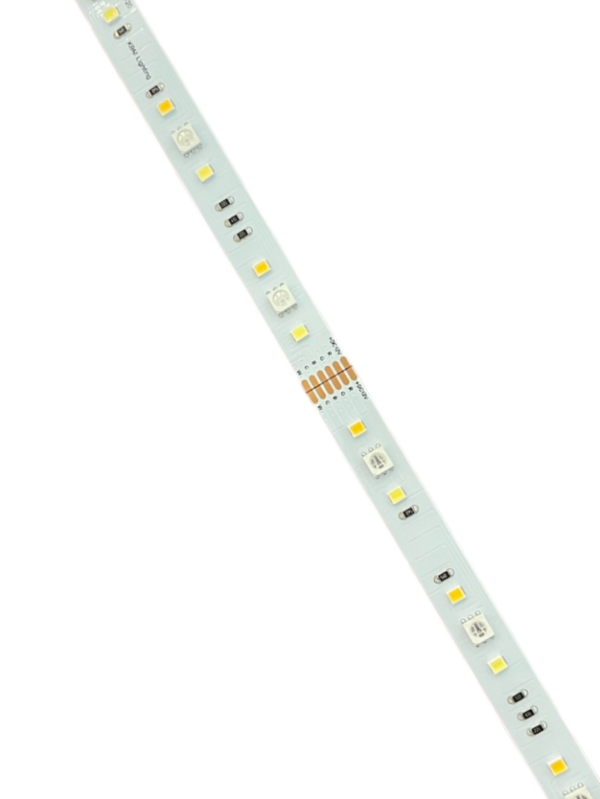

INDUSTRIAL LIGHT: SERIES KSL DYNAMIC
MODEL : KSL2835120UWW+W / KSL5050072URGB WW+W / KSL5050060URGB+W
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | Watt/meter | Beam Angle : | 120° |
| Luminous Flux : | 1200lm/m / W : 550lm WW : 400m / RGB : 190lm | Watt/Meter : | 12W / 13W / 15W / 16W |
| Luminous Efficiency : | 100lm /m / 300lm /m / 70lm/m / 120lm/m | ||
| Color Temperature : | 3000K / 6500K / RGB / WW : 3000K / W : 6500K | ||
| Efficiency (Lm/w ±10%) : | 100lm/w / W : 550 lm WW : 400lm / RGB : 190lm |
||
| Work Life : | >80 | ||
| Power Factor : | Non | Color Rendering Index : | >80 |
| Work Temperature : | Work Life : | 20,000hr | |
| Input Voltage : | 12V / 24Vdc | Efficiency (Lm/w ±10%) : | 2835 : 120 / 5050RGB : 24 2835W : 24 / 2835WW : 24 5050RGB : 30 / 5050W : 30 |
| Color : | White | Cover : | Non |
| FPC Width (mm) | 10mm | IP Rating : | IP20 / IP67 |
