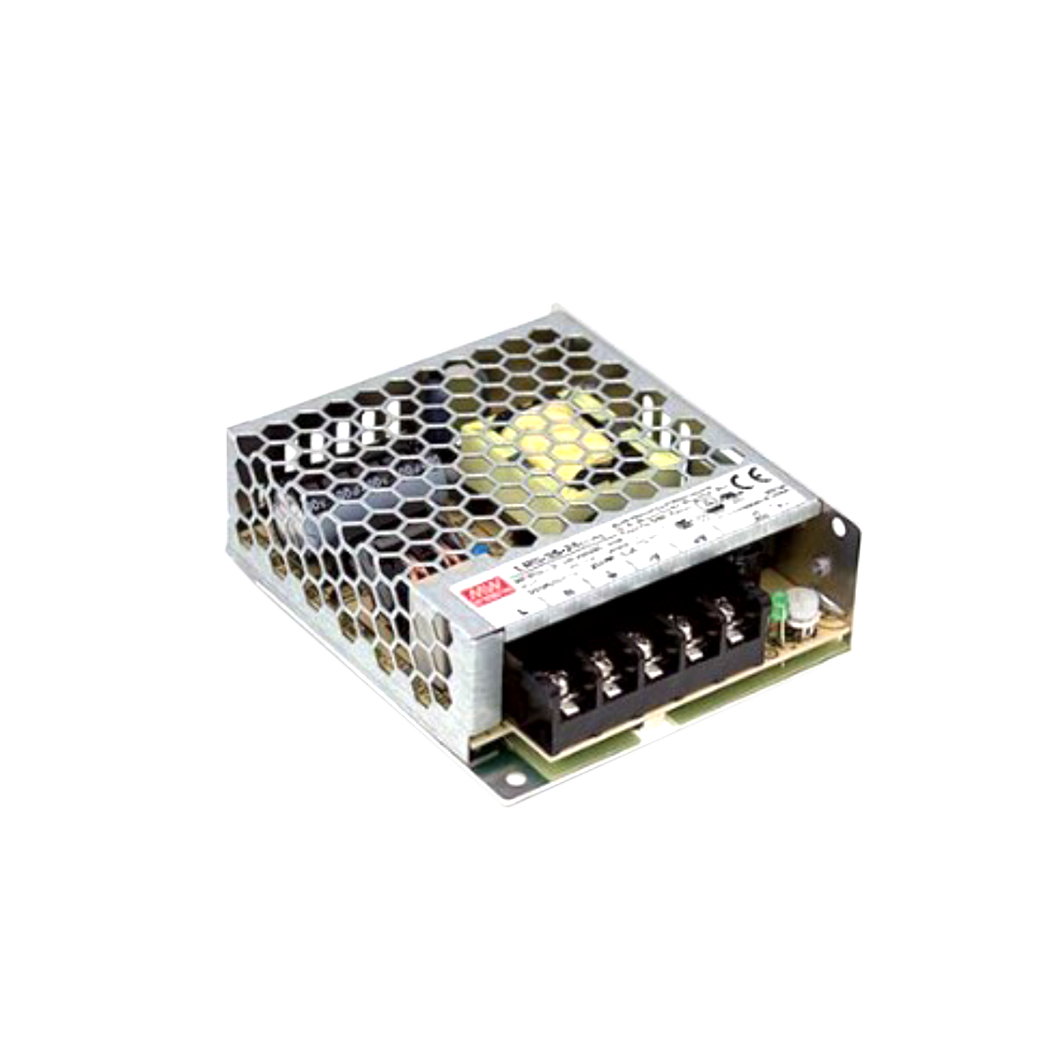

INDUSTRIAL LIGHT: SERIES LRS
MODEL : LRS-35-24 / LRS-50-24 / LRS-75-24 / LRS-100-24 / LRS-150-24 / LRS-20-24 /LRS-350-24
Specification
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rate Power : | 35W / 50W / 75W / 100W / 150W | Overload Protection Range: | 110% ~ 150% , 110% ~ 140% |
| Output Rated Current : | 1.5A – 29A | 110% ~ 150% , Rated output voltage | |
| Output DC voltage : | 12Vdc / 24Vdc | 115% ~ 145% , Rated output voltage | |
| AC input voltage range : | 85~264V : 120-370CDV | Overload Protection Type: | Hiccup mode , auto-recovery |
| 115/230V by switch | Shut down o/p voltage / re-power on to recover | ||
| Working Temperature : | -30 to + 70°C (Refer to Derating Curve) | ||
| AC inruch current (max) : | Cold start, 45A at 230V | -25 to + 70°C (Refer to Derating Curve) | |
| 65A at 230V , 50A at 230V | |||
| Dimension : | 99x82x30 mm., 99x97x30mm., | ||
| 129x97x30 mm., 159x97x30 mm., | |||
| DC adjustment range : | +10% by potentiometer | 215x115x30mm. |
